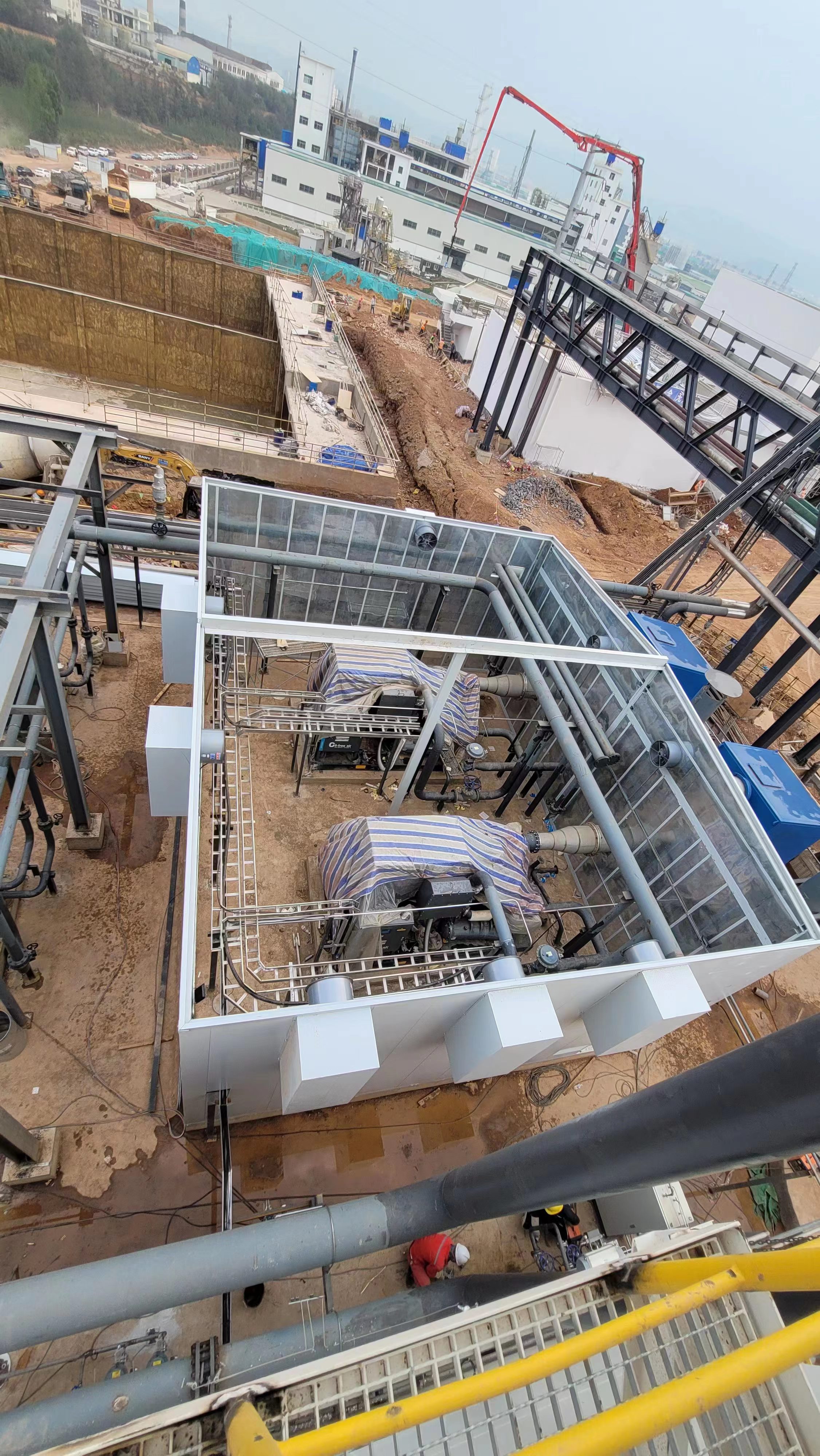

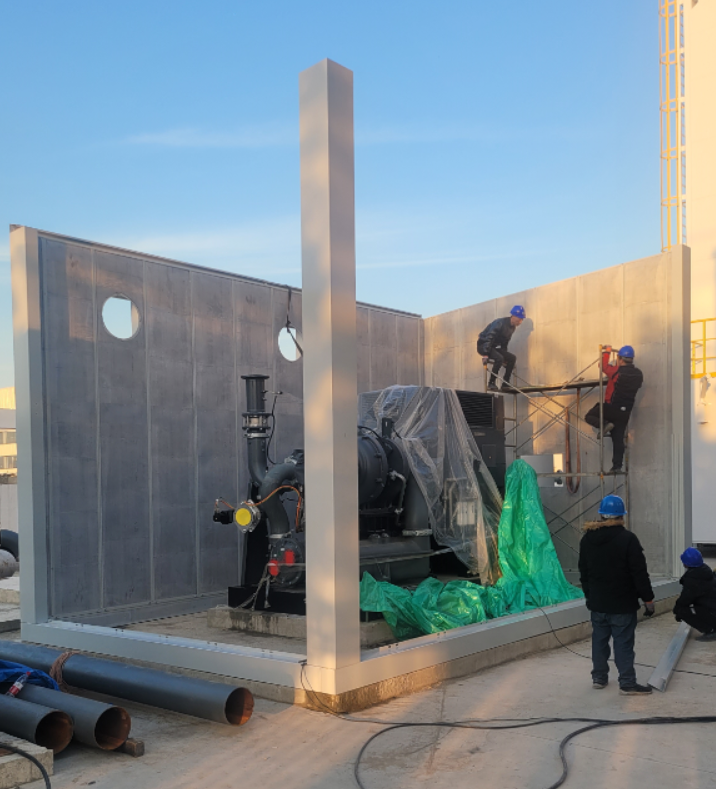

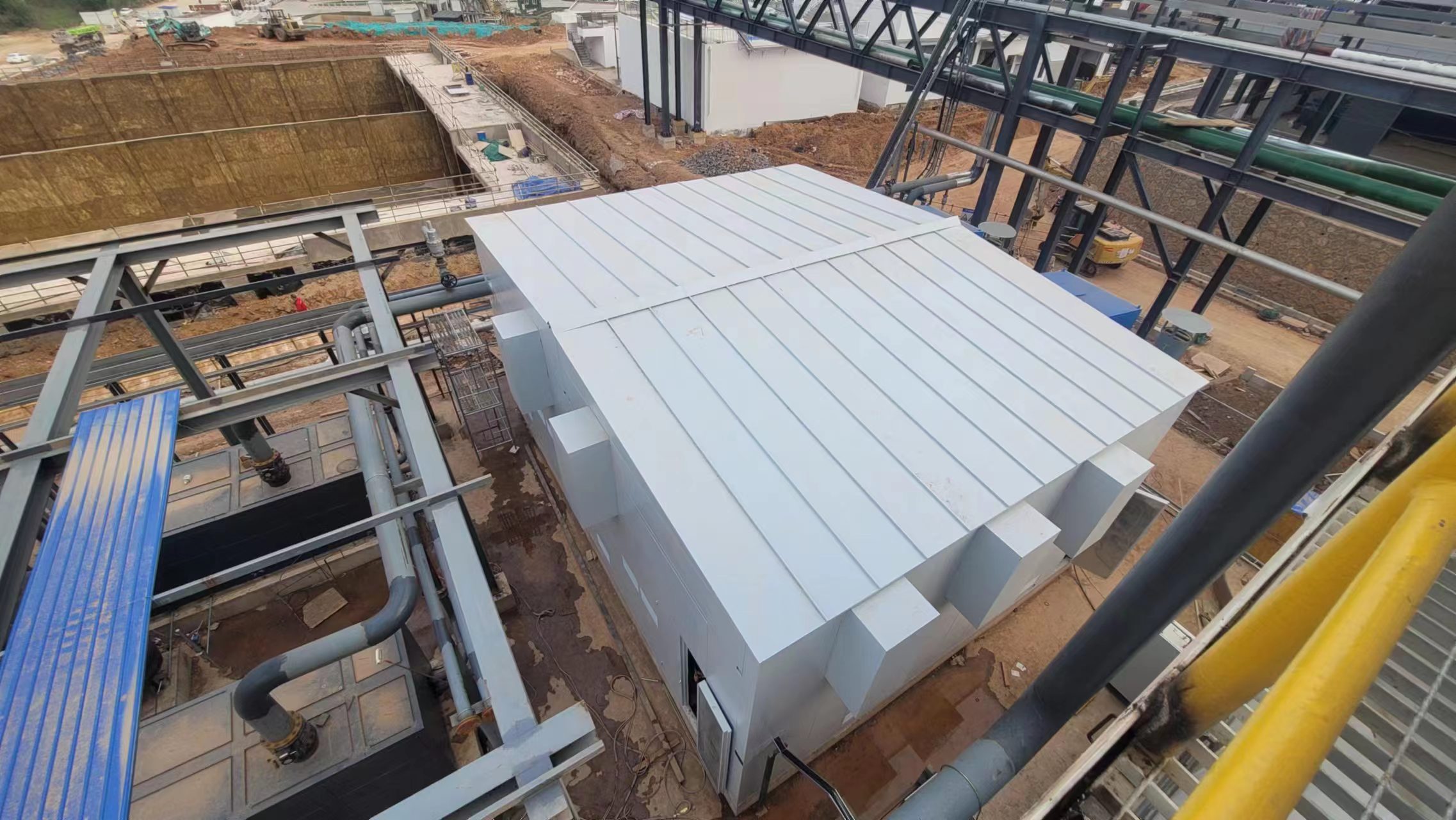

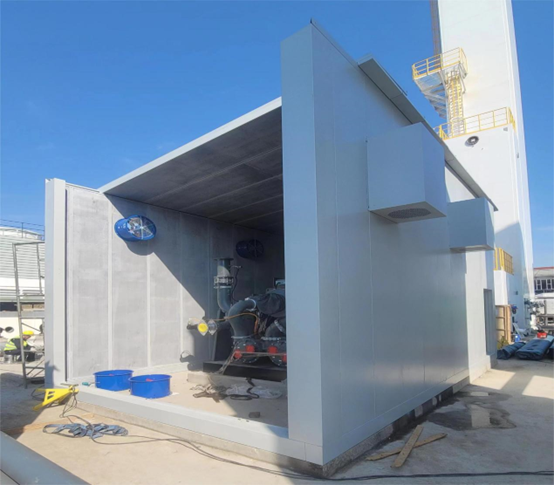

42003A 9200×3200×4300/100mm Soundproof Enclosure for Compressor
Tag No. : 42003A
Model: 9200×3200×4300/100mm
Name: Soundproof Enclosure for Compressor
1. Main Configuration
|
Soundproof enclosure 9200W×3200L×4300H×100（mm） |
||||||
|
SN |
Name |
Specification/Parameter |
Unit |
Qty |
Note |
|
|
1 |
Sound insulation enclosure wall |
Wall galvanized steel plate |
1.5mm galvanized sheet (Ansteel) |
㎡ |
137 |
|
|
Frame and beam structure |
3.0mm galvanized steel plate (Ansteel) |
㎡ |
137 |
|||
|
Environmentally friendly soundproof cotton |
The density of soundproof cotton is 80Kg 100mm thick |
㎡ |
137 |
|||
|
Flame retardant glass fiber cloth |
150g density flame-retardant mesh fabric |
㎡ |
137 |
|||
|
Galvanized perforated mesh plate |
Perforation rate ≥ 25% to meet sound absorption requirements 0.8mm thick single sided spray molding |
㎡ |
137 |
|||
|
surface treatment |
High temperature 220 ℃ spray of anti-static powder Plastic treatment (outdoor powder) |
㎡ |
137 |
|||
|
Soundproof glass |
Double layer 5mm soundproof tempered glass |
pc |
1 |
|
||
|
Sealant strip |
C-shaped and D-shaped bottom 80 × 100mm rubber Rubber shock absorption and anti slip pad |
set |
1 |
|
||
|
Cooling fan |
Voltage 220V 50HZ, air volume 6000m3/h |
set |
4 |
|
||
|
Automatic constant temperature system |
|
set |
1 |
|
||
|
Heat dissipation silencer |
|
set |
4 |
|
||
|
Air inlet louver |
|
set |
4 |
|
||
|
Environmentally friendly lighting |
PVC for 220V LED anti light wires Threading tube |
set |
1 |
|
||
|
2 |
Installation accessories |
Parts |
pc |
1 |
|
|
For more details, please feel free to contact us by email sales@wintekgroup.com
Key Words: Soundproof Enclosure for Compressor, Soundproof Room, Soundproof Enclosure
