42002A 2000Nm³/h Landfill Gas Utilization Unit
Tag No. : 42002A
Model: 2000Nm³/h
Name: Landfill Gas Utilization Unit
1. Technical data of the torch
1.1 Reference technical conditions:
1.2 Biogas production per hour: 2000 Nm³/h
1.3 Internal combustion type.
4.1.3 Main material: all stainless steel 304.
2. Torch configuration details
|
SN |
Name |
Model |
Unit |
Qty |
Remark |
|
Container internal equipment |
|||||
|
1 |
Pressure gauge |
0-10KPa |
Set |
1 |
Material: stainless steel 304 |
|
2 |
Flowmeter |
DN200 |
Set |
1 |
|
|
3 |
Solenoid valve |
DN250 |
Set |
1 |
Material: stainless steel 304 |
|
4 |
Flame arrester |
DN250 |
Set |
1 |
Material: stainless steel 304 |
|
5 |
Dehydration tank |
DN1000*1800 |
Set |
2 |
Including packing and related accessories |
|
6 |
Filter |
DN250 |
Set |
1 |
Material: stainless steel 304 |
|
7 |
Manual control valve |
DN250 |
Set |
7 |
Material: stainless steel 304 |
|
8 |
Booster blower |
SR175 15KW |
Set |
2 |
|
|
9 |
Explosion-proof frequency conversion control |
|
Set |
2 |
|
|
10 |
Methane leak alarm |
|
Set |
1 |
|
|
11 |
Gas analyzer |
|
Set |
1 |
|
|
12 |
Explosion-proof pressure transmitter |
|
Set |
2 |
|
|
13 |
Pipe fittings |
Material: stainless steel 304 |
Set |
1 |
Contains: pipes, tees, flanges, elbows, gaskets, bolts |
|
14 |
Container |
|
Set |
1 |
The container room contains light fixtures, switches, a set of sockets, and an alarm switch in explosion design. Inside the cabin, there is also a methane alarm, a source of compressed air and a ventilation system for emergency air cleaning in the cabin. |
|

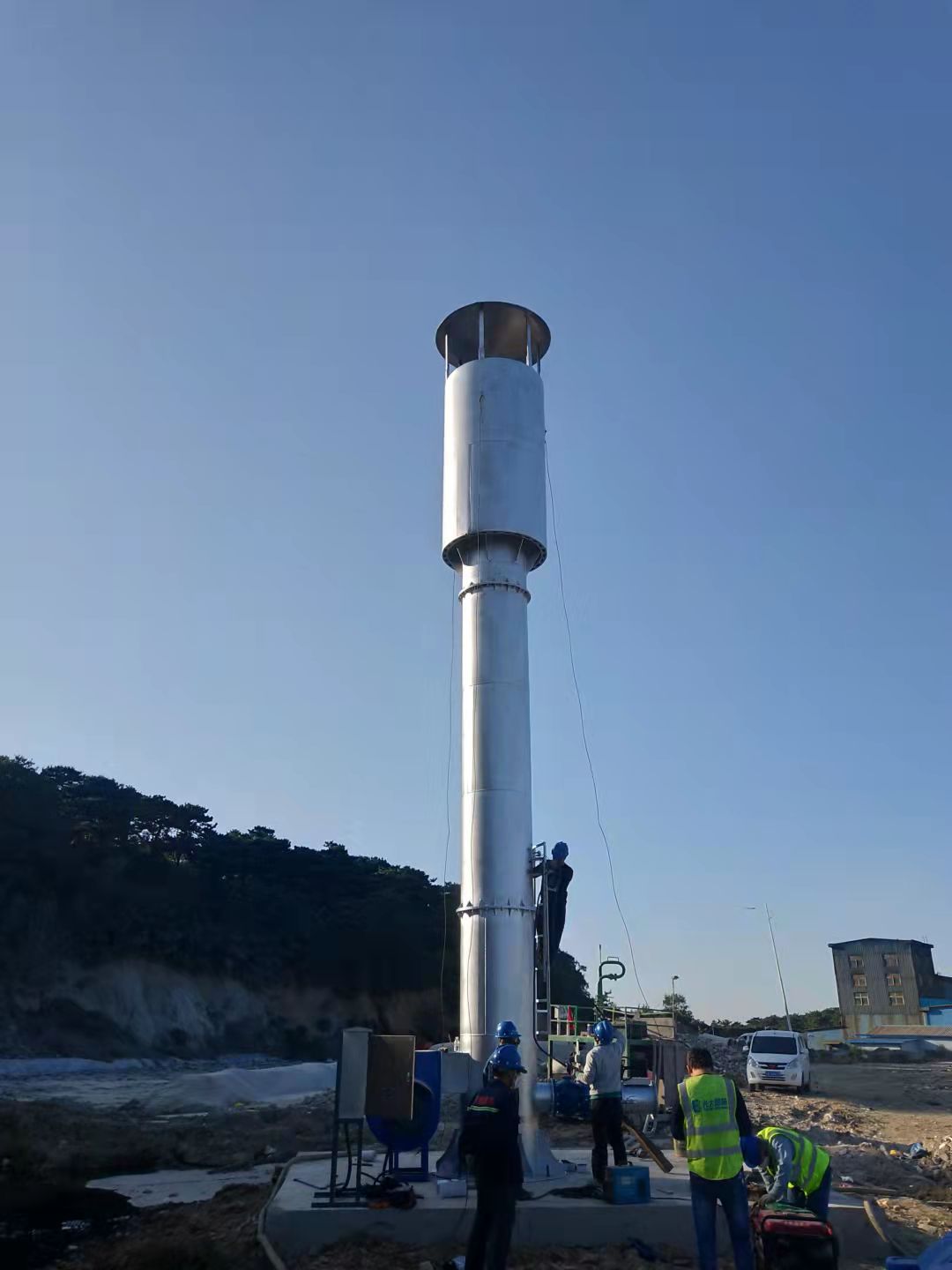

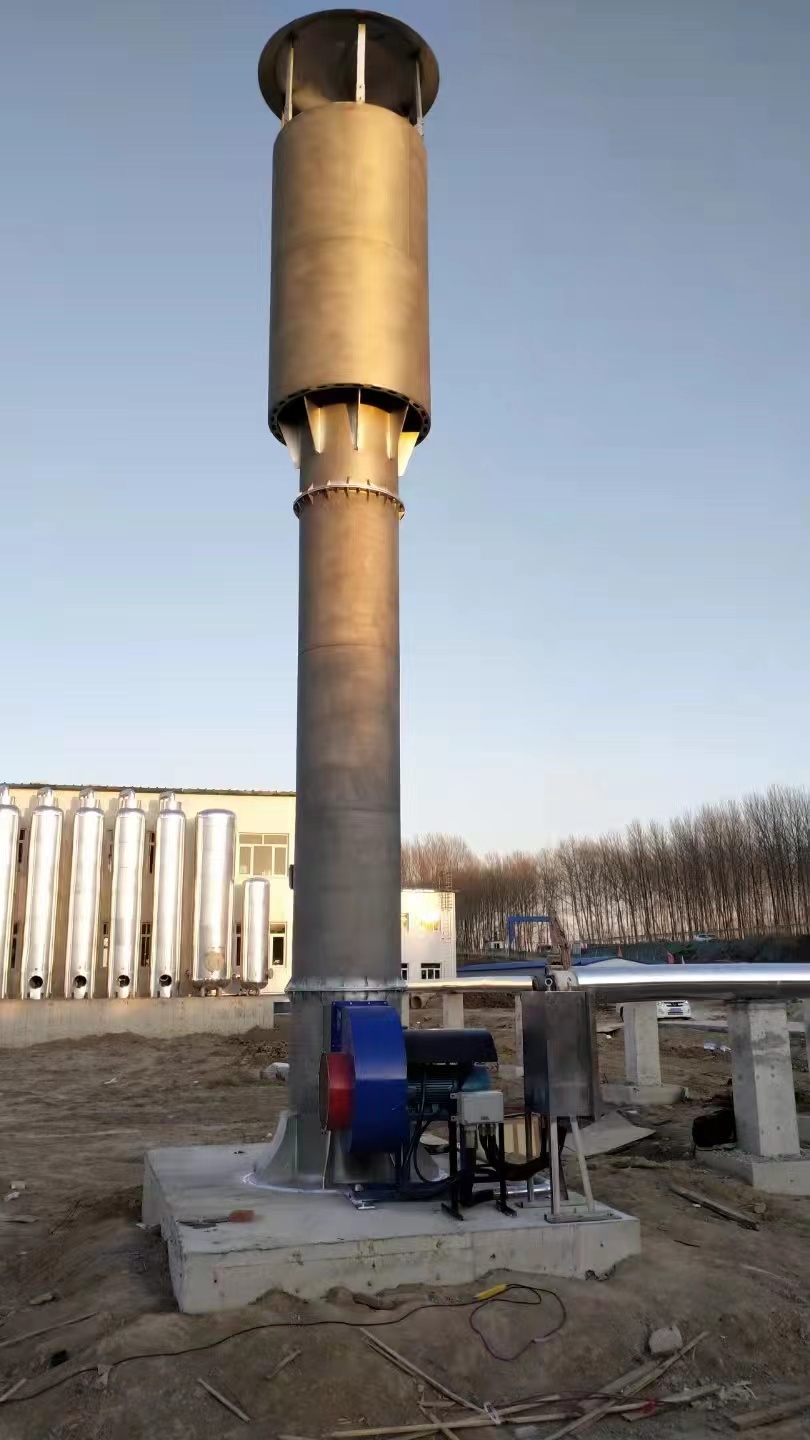

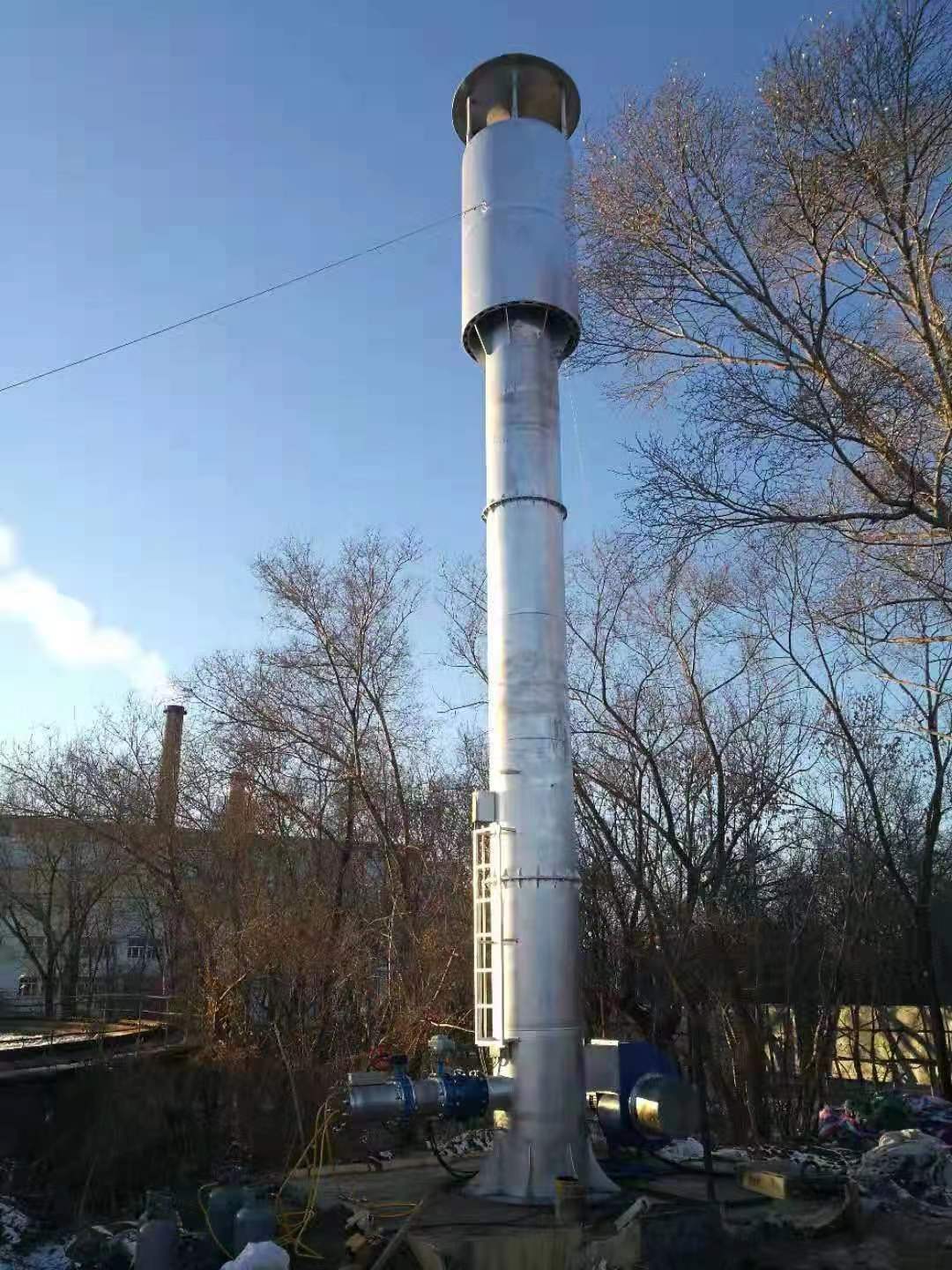

Internal combustion torch |
|||||
|
1 |
Torch body |
Φ1.9*15m |
Pc |
1 |
Contains a permanent lamp device, which needs to be equipped with a natural gas pipe for the permanent burning of the permanent lamp |
|
2 |
Combustion head |
Burner flow: 2000 cubic/h |
Pc |
1 |
|
|
3 |
Diffuser |
Φ450 |
Pc |
1 |
|
|
4 |
Oxygen supply explosion-proof blower |
30KW |
Pc |
1 |
|
|
5 |
Blast duct |
Processing according to the diameter of the fan |
Pc |
1 |
|
|
6 |
Pipe Flame Arrester |
DN250 |
Pc |
1 |
|
|
7 |
UV flame detector |
BTZJ-102 |
Pc |
1 |
|
|
8 |
UV ultraviolet flame detector probe |
Compatible with the detector |
Pc |
1 |
|
|
9 |
High energy ignition transformer |
BT-12 |
Pc |
2 |
2 for 2 standbys |
|
10 |
Ignition gun |
BT-16-300 |
Pc |
2 |
2 for 2 standbys |
|
11 |
Thermocouple |
500-700mm |
Pc |
1 |
|
|
12 |
Electric Butterfly Valve |
DN250 |
Pc |
1 |
|
|
13 |
Manual Butterfly Valve |
DN250 |
Pc |
1 |
|
|
14 |
Control cabinet |
Non-standard explosion-proof material: stainless steel 304 |
Pc |
1 |
|
|
15 |
Pipe connection flange inlet |
DN250 |
Pc |
3 |
|
|
16 |
Biogas pipeline |
|
M |
1 |
|
|
17 |
Flare drain valve |
DN30 |
Pc |
1 |
|
|
18 |
Torch waterproof cap |
φ2000 |
Pc |
1 |
|
|
19 |
Blower motor waterproof cover |
1000*700 |
Pc |
1 |
|
|
20 |
Pressure detector waterproof cover |
200*100 |
Pc |
1 |
|
