42001A RCDD-16, RCDD-20, RCT-20 Iron Separator
Tag No. : 42001A
Model: RCDD-16, RCDD-20, RCT-20
Name: Iron Separator
Technical parameters
|
1 |

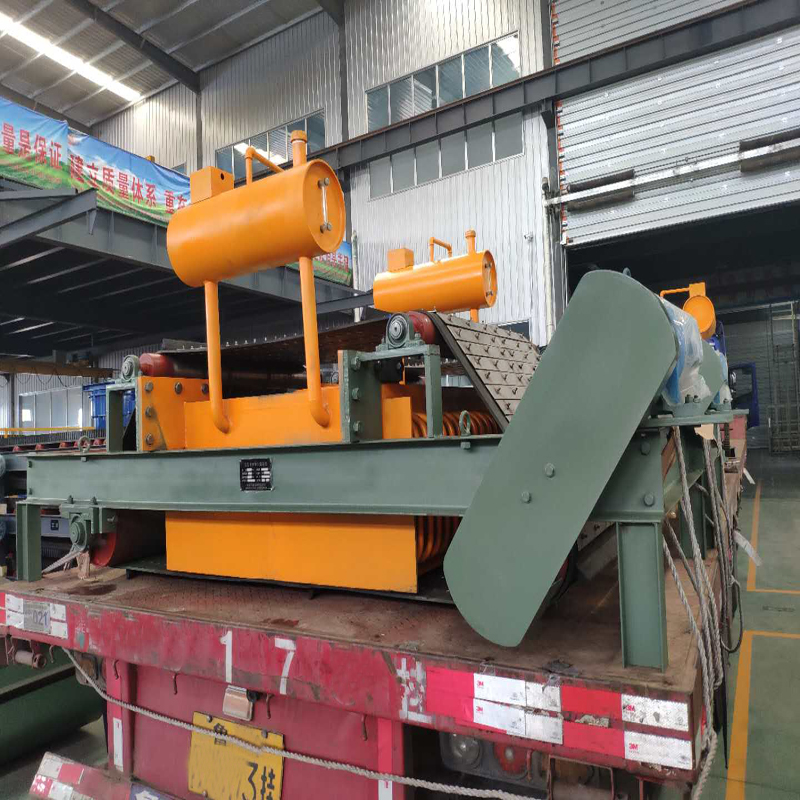

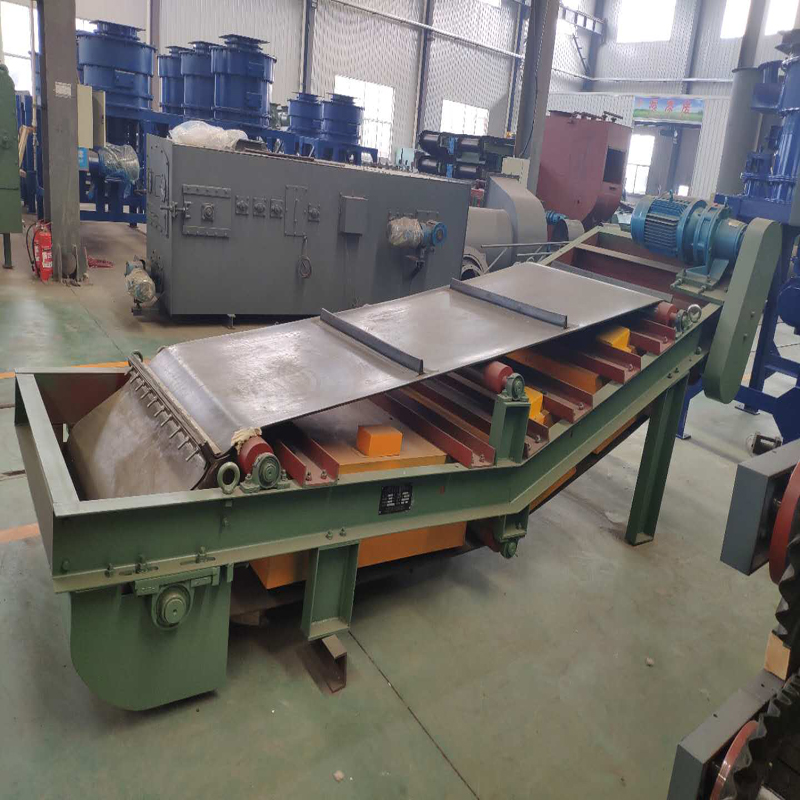

Electromagnetic self-unloading iron separator model |
RCDD-1600 |
|
|
Adaptive bandwidth (mm) |
1600 |
|
|
Adapt to belt speed (m/s) |
3.5 |
|
|
Rated magnetic induction (GS) |
10000GS |
|
|
Excitation power (kw) |
7.2 |
|
|
Controller input voltage |
380VAC |
|
|
Solenoid working voltage |
DC220V |
|
|
Drive motor input voltage |
AC380V |
|
|
Magnetic field line height |
550mm |
|
|
|
|
|
2 |
Electromagnetic self-unloading iron separator model |
RCDD-2000 |
|
|
Adaptive bandwidth (mm) |
2000 |
|
|
Adapt to belt speed (m/s) |
2 |
|
|
Rated magnetic induction (GS) |
10000GS |
|
|
Excitation power (kw): |
12 |
|
|
Controller input voltage |
380VAC |
|
|
Solenoid work voltage |
54A |
|
|
Drive motor input voltage |
AC380V |
|
|
Magnetic field line height |
700mm |
|
|
|
|
|
3 |

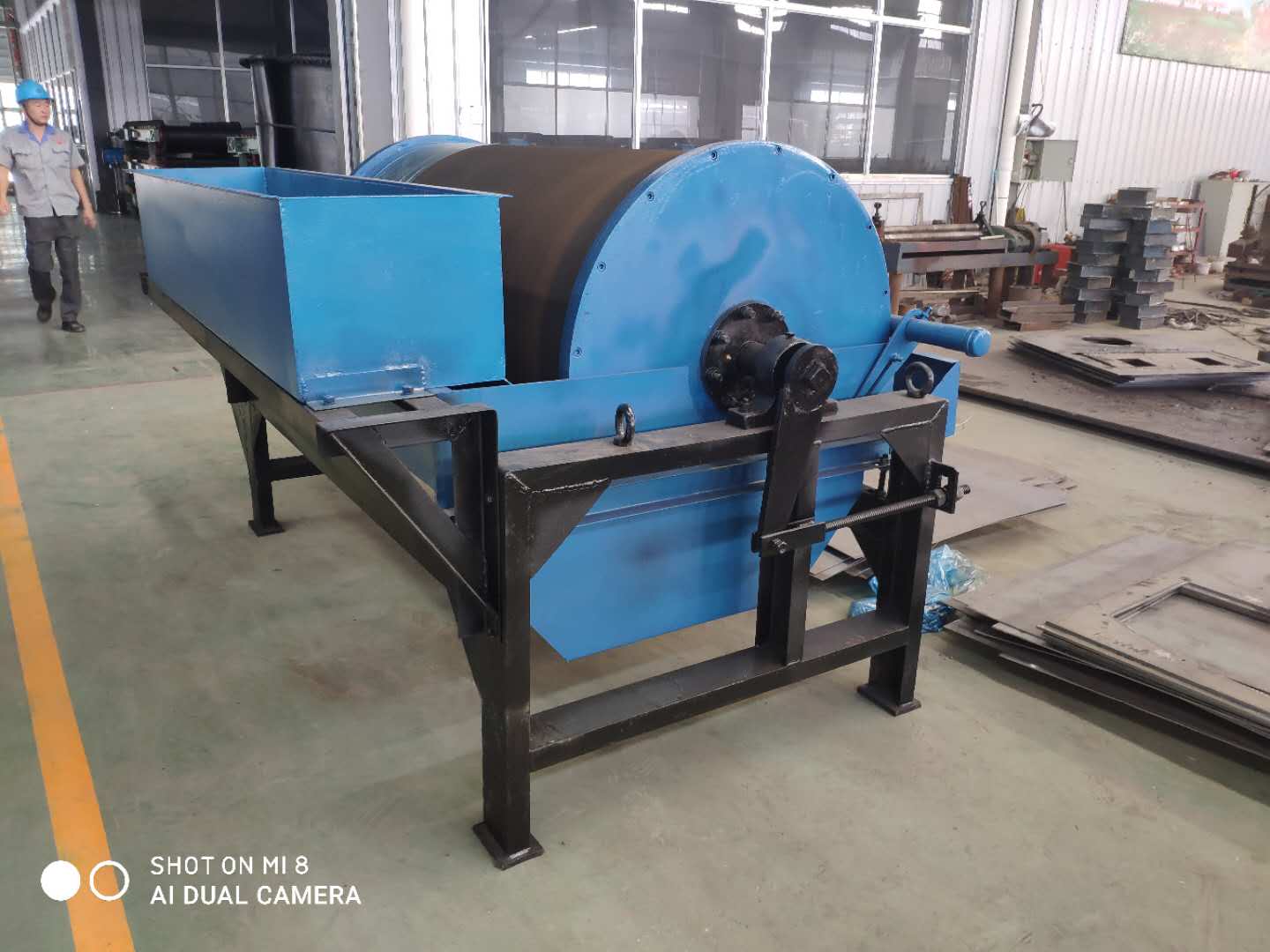

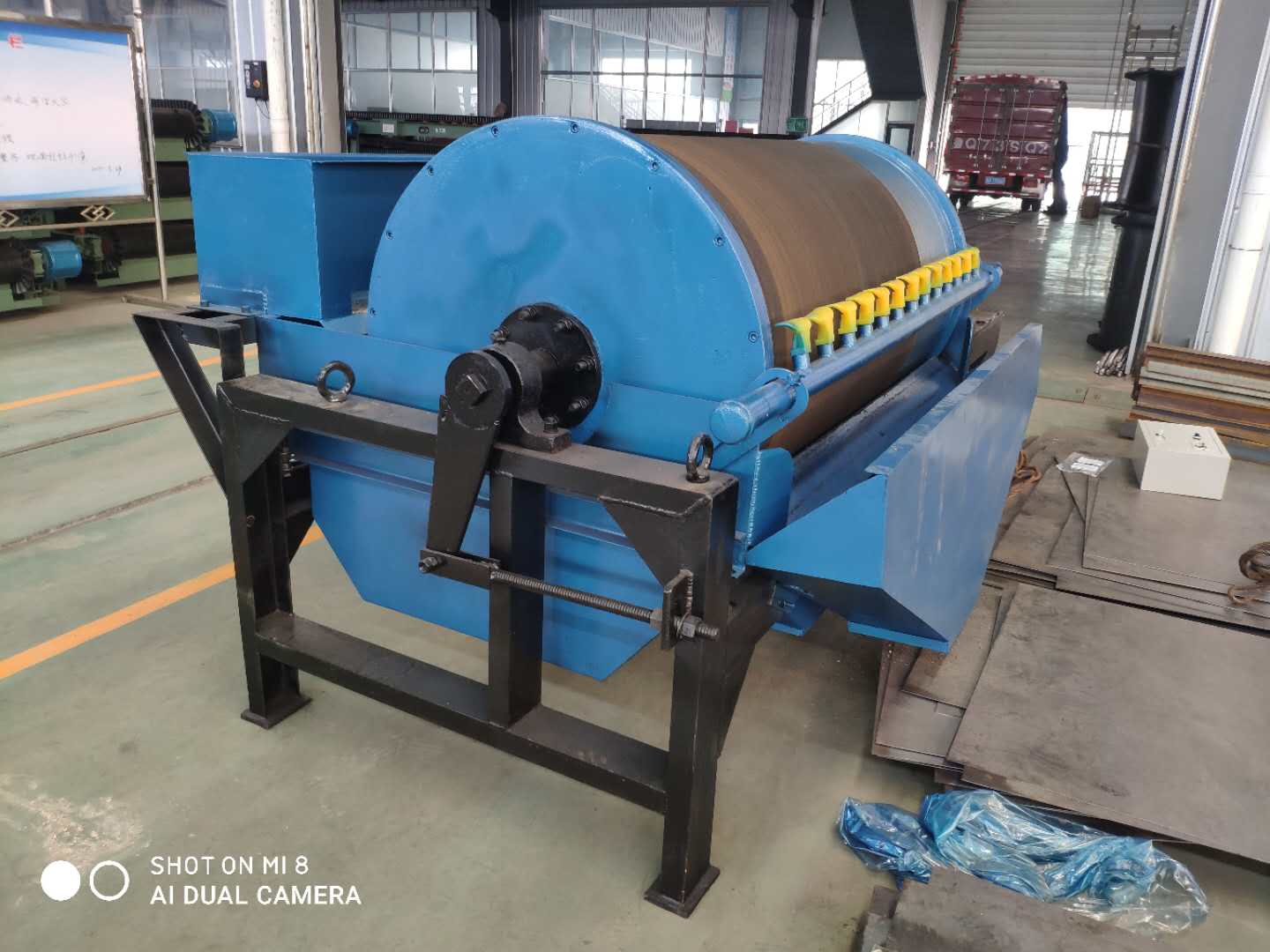

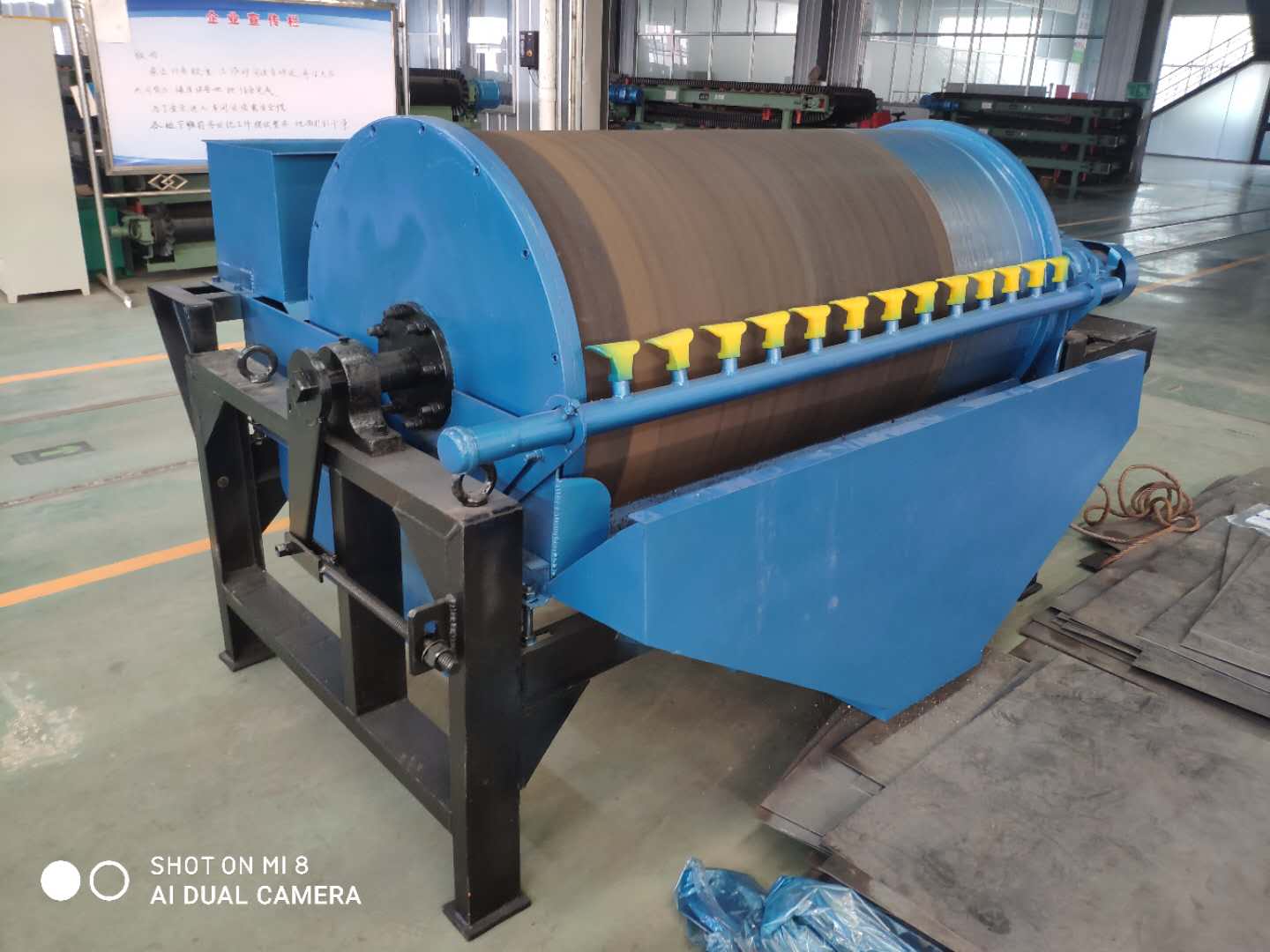

Drum pulley iron separator model |
DPMI-2000 |
|
|
Conveyor width |
2000mm |
|
|
Distribution width on tape |
1800mm |
|
|
Belt material height |
400mm |
|
|
Cleaning type |
Automatic |
|
|
Work way |
Continuous |
|
|
Lining thickness |
Not less than 10mm |
For more details, please feel free to contact us by email sales@wintekgroup.com
Key Words: Iron Separator, Electromagnetic self-unloading iron separator, Drum pulley iron separator
