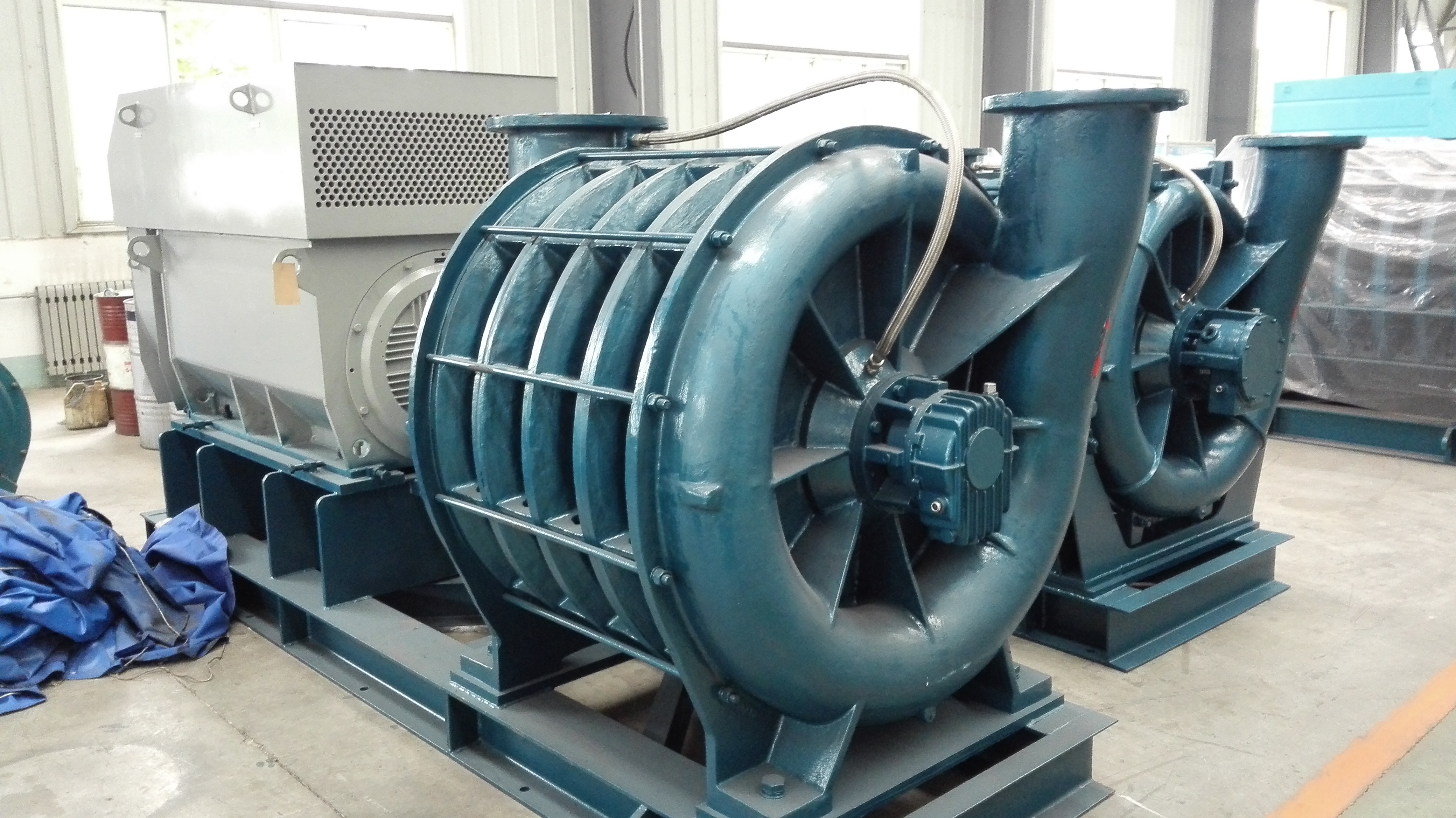

53209A D850-2.3/1.35 Centrifugal Blower

ꄴPrevious： 53210A D1100-3.0/2.1 Centrifugal Blower
ꄲNext： null

Tag No: 53209A

Model: D850-2.3/1.35

Name: Centrifugal Blower



Design data

Medium: process gas

Medium composition (V%):

Inlet flow (m3/min): 850

Inlet pressure (KPa): 135

Inlet temperature (℃): 60

Outlet pressure (KPa): 230

Relative humidity (%):

Gas constant (J/kgk): 457

Adiabatic index K:1.36

Local atmospheric pressure (KPa): 100



Selection proposal

Blower model

D850-2.3/1.35

Blower structure

Structure

Split vertically and horizontally

Stage quantity

3

Intake direction

Down

Discharge direction

Down

Layout form

Blower + speed increaser + motor

Blower speed (r/min)

6500

Shaft power (KW)

1720

Maximum impeller outer diameter (mm)

900

Weight

Rotor (kg)

1300

Blower (kg)

16000

Dimensions (L*W*H mm)

About 7200x2260x2500 (including motor)

Rotor material

Wheel disc/wheel cover

FV520B

Impeller

FV520B

Main shaft

35CrMo

Stator material

Machine shell

HT250

Division plate

HT250



For more information, please contact us by email sales@wintekgroup.com
