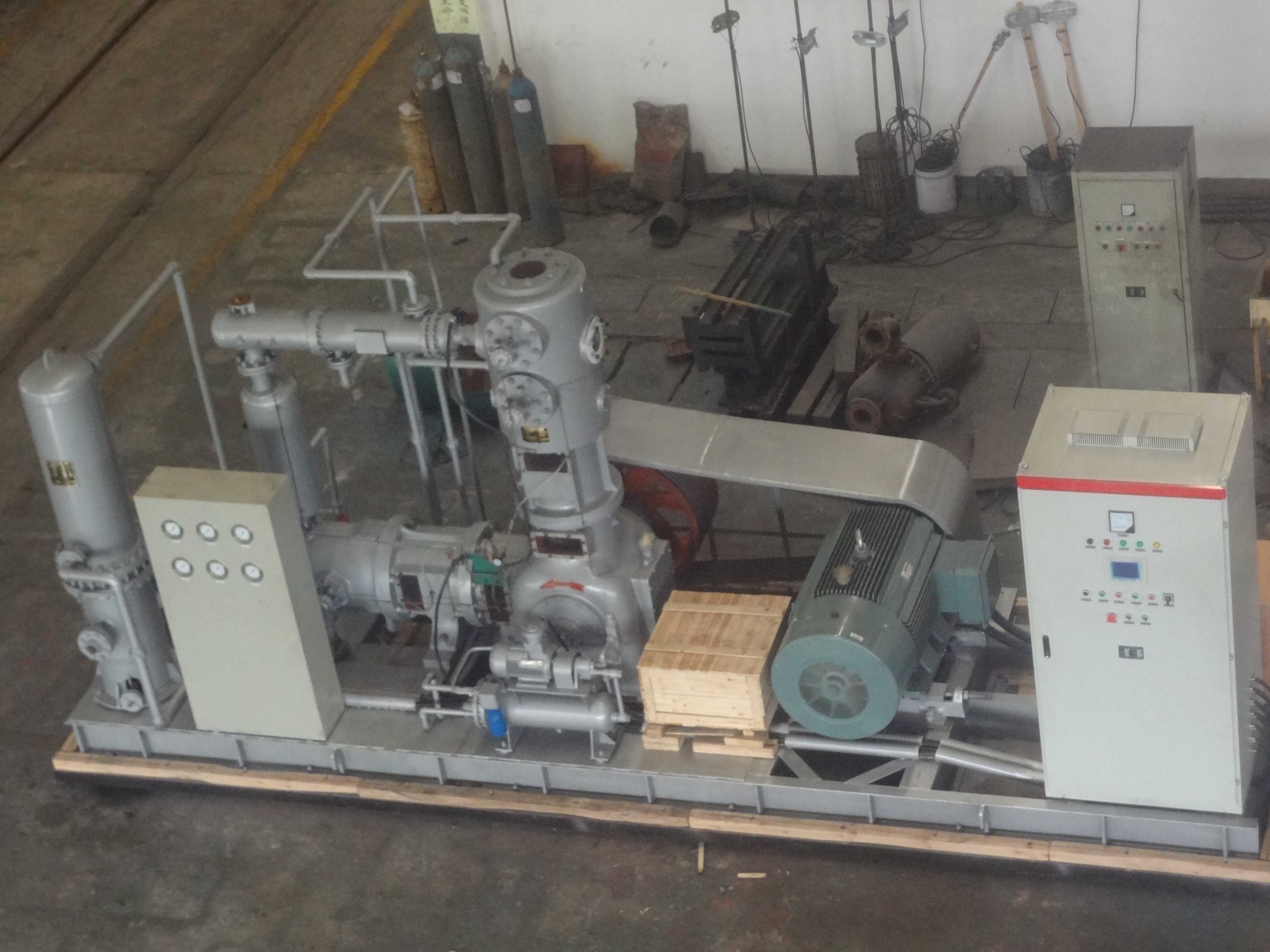

52110A LW-5.5/2-50 Reciprocating Compressor
Tag No.：52110A
Model：LW-5.5/2-50
Name：Reciprocating Compressor
This compressor is rugged; compact; unitized; space saving; reliable; high efficiency; continuous duty; oil free plant; furnished as a system complete with integral gears, intercoolers, base plate, controls, lubrication system and driver.
Design parameters：
|
SN |
Name |
Unit |
Data |
Note |
|
1 |
Compressor model |
|
LW-5.5/2-50 lubrication free nitrogen compressor |
|
|
2 |
Type |
|
L type, two columns, two stage, water cooling, cylinder oil free lubrication Skid mounted |
|
|
3 |
Ambient temperature | ℃ |
Not lower than +5 |
|
|
4 |
Inlet pressure |
MPa |
0.2~0.6 |
|
|
5 |
Inlet temperature |
℃ |
-30~30 |
|
|
6 |
Dew point |
℃ |
-63 |
|
|
7 |
Compressed medium |
|
99,99% NITROGEN |
|
|
8 |
Discharge flow(suction status) |
m³/min |
1,27 … 5.5 |
|
|
9 |
Discharge pressure |
MPa |
5.0 |
|
|
10 |
Discharge temperature |
℃ |
≤60 |
|
|
11 |
Shaft power |
KW |
≤230 |
|
|
12 |
Main machine cooling water consumption (Inlet water temperature≤30℃) |
m³/h |
15 |
|
|
12.1 |
Aftercooler cooling water consumption |
m³/hr |
15 |
|
|
13 |
Size(L×W×H) |
mm |
3500×2000×3000 |
|
|
14 |
Main machine weight |
Kg |
6000 |
|
|
15 |
Motor model |
|
Y 355L-6 |
Siemens |
|
16 |
Power |
KW |
250 |
|
|
17 |
Voltage/Frequency |
V/phase/HZ |
380/3/50 |
|
|
18 |
Protection level |
|
IP23 |
|
|
19 |
Electrical control cabinet |
|
GHS-250 |
Non explosion proof |
|
20 |
Local instruments cabinet and other instruments, valves Include: |
|
|
|
|
|
Pressure gauge |
|
1st and 2nd stage, 2pc |
|
|
|
Local Oil pressure gauge |
|
1pc |
|
|
|
Safety valve |
|
1st and 2nd stage, 2pc |
|
|
|
Transmitters |
|
Suction pressure, 1st and 2nd stage pressure, lubrication oil pressure, cooling water pressure, 5pc |
|
|
|
RTD |
|
1st and 2nd stage,2pc |
|
|
21 |
Coolers |
|
1st stage 2nd stage model GYB15-14/6.0 |
|
|
22 |
Buffer vessel |
|
Inlet buffer |
|
|
23 |
Lub oil station |
|
|
|
|
24 |
Other data |
|||
|
24.1 |
Installation site altitude |
m |
<1000(143m) |
|
|
24.2 |
Recycle cooling water conditions |
|
|
|
|
|
Inlet water pressure |
MPa G |
≥0.3 |
|
|
|
Inlet water temperature |
℃ |
28 |
|
|
|
PH value |
|
7~8.5 |
|
|
|
Mass concentration of suspended particles |
Mg/dm³ |
<58 |
|
|
|
Fractional composition of solid particles |
|
More 160 micron 0% 100~160 micron 18.3% 40~100 micron 81.7% 16~40 micron 0% Less 16 micron 0% |
|
|
24.3 |
Seismicity |
|
≤6 grades |
|
|
24.4 |
Month average relative humidity |
|
73~82% |
|
|
25 |
Lubrication oil |
|
IS-L-DAB Viscosity VG100 Oil standard ISO3448 |
|
|
|
Frequency of oil change |
|
2000~4000h |
Note: if oil is clean, it can continue to use. |
|
26 |
Suction and discharge valves |
|
|
|
|
27 |
Rings, gaskets and sealing bushes |
|
|
|
For more details, please feel free to contact us by email to sales@wintekgroup.com
Key Words: Nitrogen Compressor, Piston Compressor, Reciprocating Compressor, Nitrogen Booster Compressor
