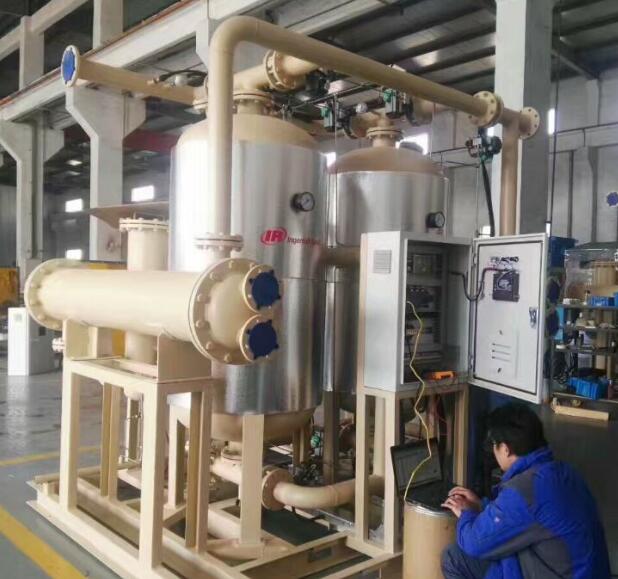

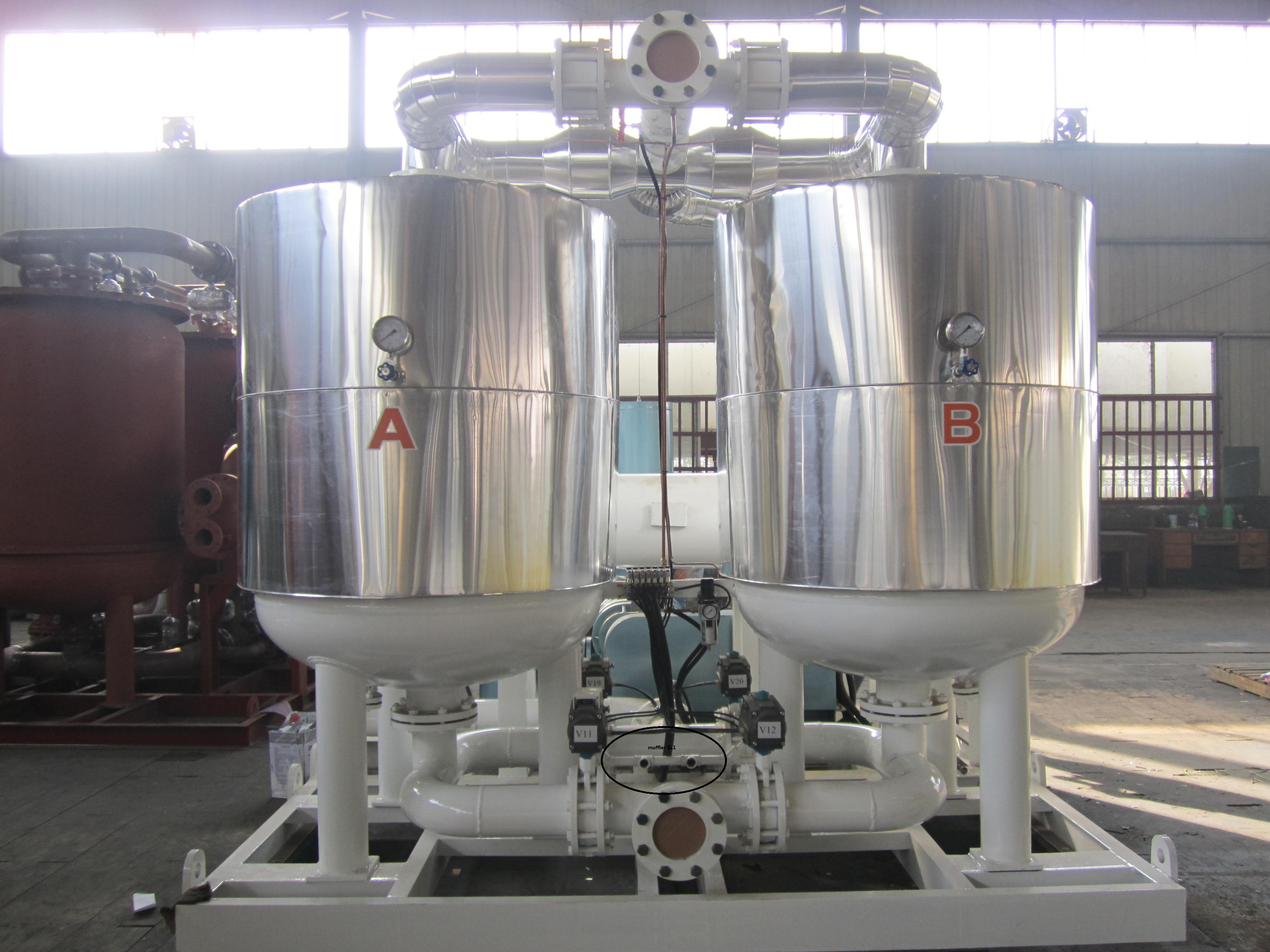

41006A 3/400 Air Dryer
Tag No.：41006A
Model：3/400
Name：Air Dryer
1. Technical parameters and process flow diagram of integrated dryer
|
1.1 |
GS-3/400 technical parameters for heatless regeneration dryer |
|||
|
1.1.1 |
Description |
Data |
Remarks |
|
|
1.1.2 |
Type |
Twin-tower |
|
|
|
1.1.3 |
Rated processing capacity |
3.5 Nm3/min |
|
|
|
1.1.4 |
Design pressure |
≤45 MPa |
|
|
|
1.1.5 |
Work pressure |
≤40 MPa |
|
|
|
1.1.6 |
Inlet temperature |
≤50℃ |
|
|
|
1.1.7 |
Pressure loss |
≤0.3 MPa |
|
|
|
1.1.8 |
Regeneration way |
Heatless regeneration |
|
|
|
1.1.9 |
Regenerated gas consumption |
≤3% |
|
|
|
1.1.10 |
Twin tower switching method |
Automatic |
|
|
|
1.1.11 |
Control mode |
PLC Control |
|
|
|
1.1.12 |
Switching period (single tower adsorption time) |
40 min |
Time adjustable |
|
|
1.1.13 |
Dew point temperature of output gas |
≤-55℃ |
|
|
|
1.1.14 |
Oil content of finished gas |
≤1 mg/m³ |
|
|
|
1.1.15 |
Output gas with particle size |
≤1μm |
|
|
|
1.1.16 |
Adsorbent |
13X |
|
|
|
1.1.17 |
Adsorbent loading capacity |
18 Kg |
|
|
|
1.1.18 |
Inlet joint |
φ20×4 mm |
|
|
|
1.1.19 |
Outlet joint |
φ20×4 mm |
|
|
|
1.1.20 |
3D dimensions |
～1100×620×1600 mm |
|
|
|
1.1.21 |
Equipment weight |
～500 Kg |
|
|
|
1.2 |
PID drawing |
|||
|
|
1.2.1 |
Flow diagram of the dryer process |
||
|
|
|
|||
