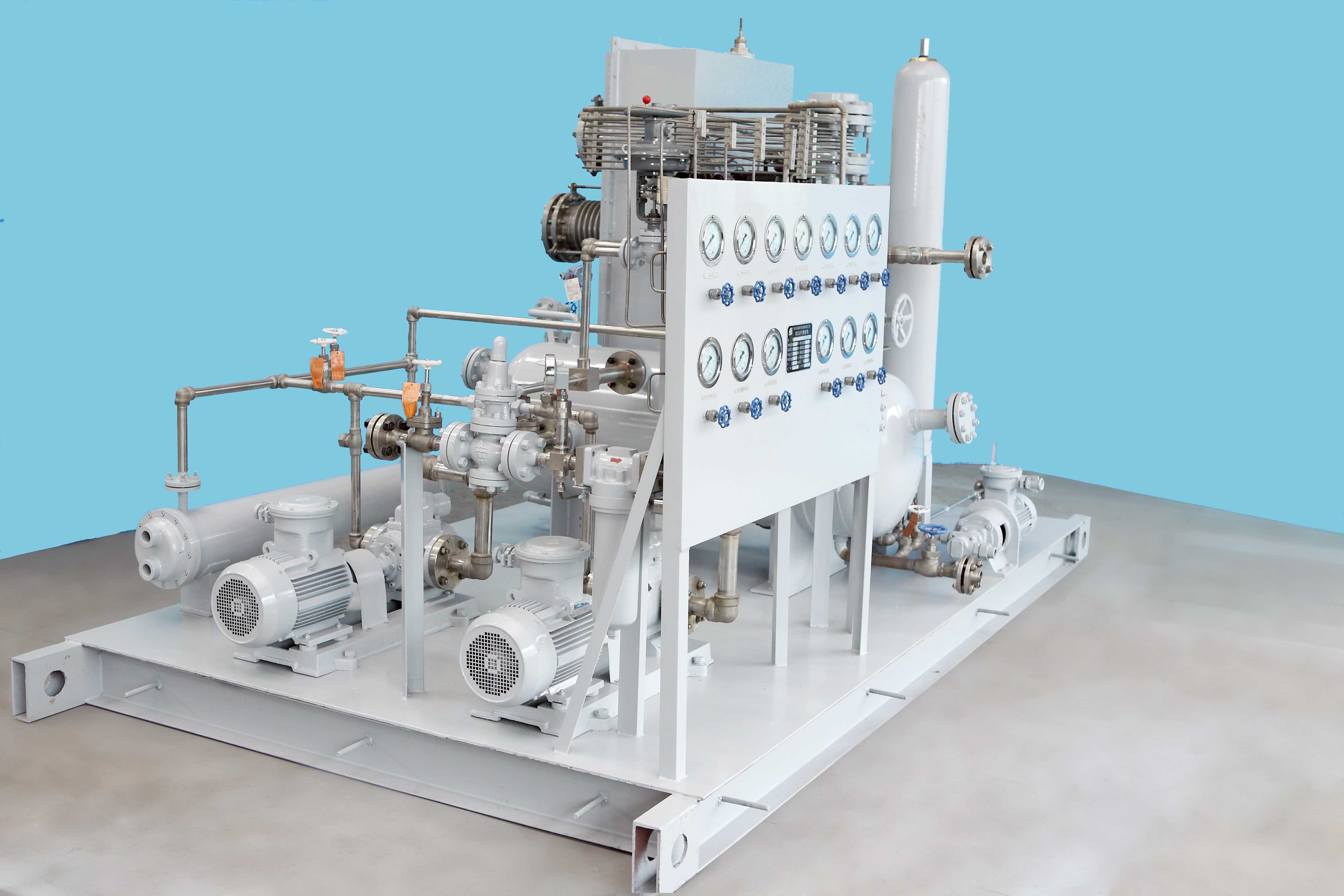

57106A Turbine Expander
Tag No.: 57106A
Name: Turbine Expander
1. 技术参数
Technical specifications
|
序号 SN |
名称 Name |
膨胀端 Expander side |
压缩端 Compressor side |
单位 Unit |
|
1.4.1 |
标准体积流量 Standard volumetric flow rate |
262750 |
259535.98 |
m3/h |
|
1.4.2 |
质量流量 Mass flow rate |
58.35 |
56.52 |
Kg/s |
|
1.4.3 |
进口压力 Inlet pressure |
6990 |
5370 |
Kpa A |
|
1.4.4 |
进口温度 Inlet temperature |
14 |
40 |
℃ |
|
1.4.5 |
排气压力 Outlet pressure |
6150 |
5760 |
Kpa A |
|
1.4.6 |
排气温度 Outlet temperature |
5.3 |
45.8 |
℃ |
|
1.4.7 |
输出（损耗）功率 Output (loss) power |
649.2 |
622.66 |
KW |
|
1.4.8 |
总静效率 Total static efficiency |
0.905 |
/ |
|
|
1.4.9 |
多变效率 Polytropic efficiency |
/ |
0.779 |
|
|
1.4.10 |
转速 Rotational speed |
8000 |
8000 |
rpm |
|
1.4.11 |
叶轮形式 Impeller type |
闭式 Closed type |
闭式 Closed type |
|
|
1.4.12 |
轴承形式 Bearing type |
主动控制型磁悬浮轴承（AMB） Active Magnetic Bearing (AMB) |
||
2.供货范围
Scope of supply
|
序号 SN |
名称 Name |
数量 Qty |
|
2.1 |
磁浮膨胀-压缩主机（含磁浮轴承） Magnetic levitation expansion-compression unit (including magnetic levitation bearings) |
1套 1 Set |
|
2.2 |
磁悬浮控制系统 Magnetic levitation control system |
1套 1 Set |
|
2.3 |
膨胀机紧急切断阀（气动型）（DN400） Expansion turbine emergency shut-off valve (pneumatic type) (DN400) |
1台 1 Set |
|
2.4 |
压缩机回流阀（气动型）(DN400) Compressor bypass valve (pneumatic type) (DN400) |
1台 1 Set |
|
2.5 |
控制系统（含主机控制和压缩机防喘振系统） Control system (including main unit control and compressor anti-surge system) |
1套 1 Set |
