Name

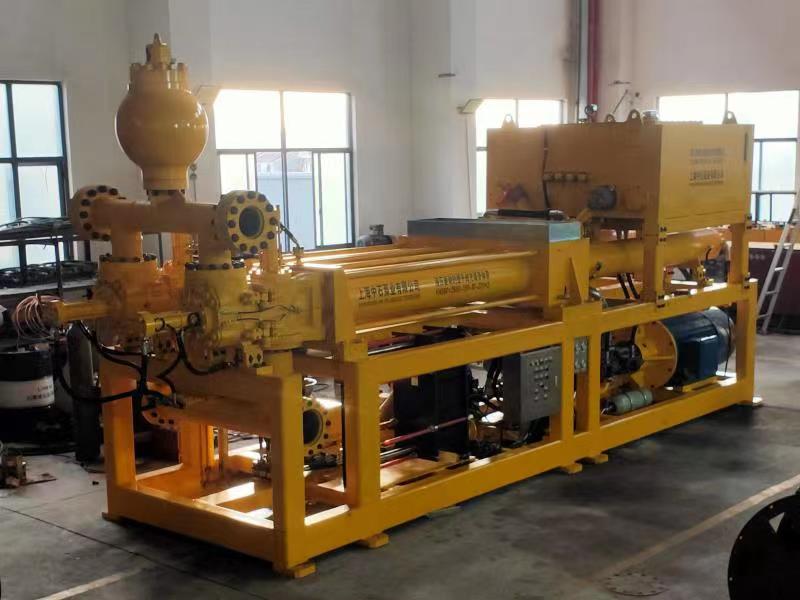

Slurry pump system:

Slurry long distance pipeline transport pump system (hydraulically driven lift valve piston pump)

Model

YH510/300-500 10-450*3

Feed material cylinder diameter * stroke

510*2500mm

Oil cylinder diameter*stroke

300*2500mm

Direction changes times

15.7 times/min (480 m³/h)

16.3 times/min (500 m³/h)

Rated flow

480 m³/h (maximum 500 m³/h, VFD adjustment between 50-500 m³/h)

VFD frequency

480 m³/h frequency

45Hz

500 m³/h frequency

47Hz

Pump outlet rated output pressure

8MPA (the maximum output pressure of the pump outlet is rated at 10.8MPA)

(When the slurry output pressure is 8MPA, the oil pressure is 23.1MPA, when the maximum slurry output pressure is 10.89MPA, the oil pressure is 31.5MPA)

Main oil pump

A4V355+A4V355+A10V45 3 sets

Installed power

450KW*3 sets=1350KW

The entire pump system includes

Hydraulically driven two-cylinder piston pump, hydraulically driven four-cylinder lift valve, hydraulic system, automatic lubrication system, cooling system, control system (on-site, local, remote access user central control system)

Maximum concentration

85%

Largest particle

15mm

Weight

About 100 tons

Continuous operation wearing parts life

The service life of the valve disc, valve seat and piston are more than 1 year.
