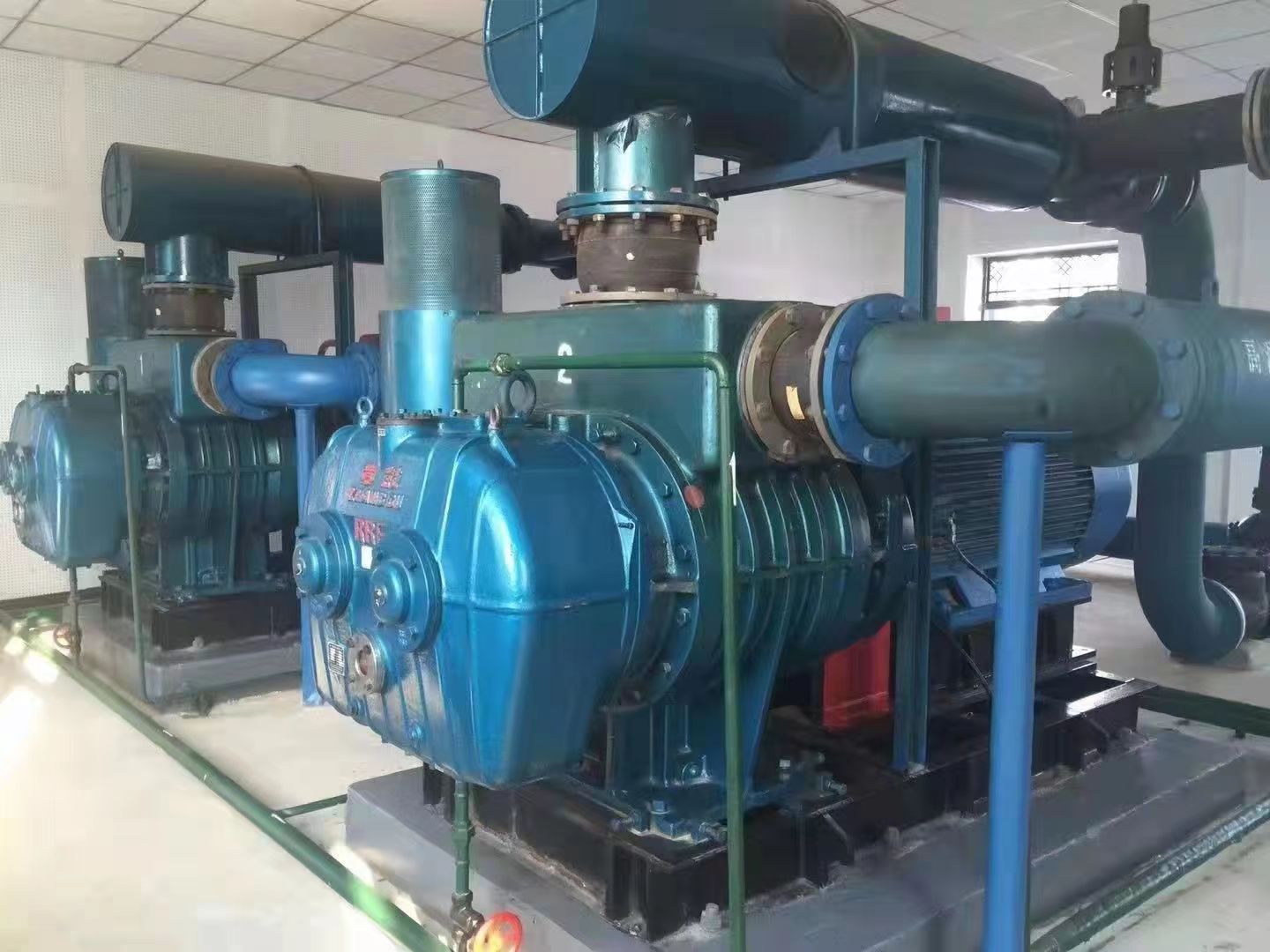

54001A ZR7-800W Vacuum Pump

Tag No.：54001A

Model：ZR7-800W

Name：Vacuum Pump

Specifications and technical parameters

Work conditions	Conveying medium	Gas: O₂ - 14%; N₂ - 86%
	Inlet flow (m³/h)	45800
	Intake air temperature (℃)	35
	Inlet pressure Kpa(G)	-70
	Outlet pressure Kpa(G)	1
	Boost (kPa)	71
Blower performance	Blower model	TZR7-800W
	Inlet flow (m³/min)	770
	Blower speed (r/min)	590
	Transmission form	Double shaft straight connection
	Boost (kPa)	71
	Cooling method	Water cooling
	Sealed form	Labyrinth seal
Motor	Model	YXKK560-10
	Power (kW)	1000K
	Voltage value (V)	6000
	Protection class	IP55
	Insulation class	F
	Frequency (HZ)	50
Blower material	Chassis	HT250
	Impeller	HT250
	Wall panel	HT250
	Tank	HT250
	Gear	20CrMnTi
	Axis	45# steel forging and tempering treatment
	Bearing	2 discs NSK 2 discs FAG
