32205A Natural Vaporizer

ꄴPrevious： null

ꄲNext： 32202A Methane /Ethylene Vaporizer

Tag No.: 32205A

Name: Natural Vaporizer

1.性能参数

Performance parameter

序号

参数名称

Parameter name

设计参数

Design(ed) value

1.1

工作压力

Working pressure

0.05 MPa

1.2

设计压力

Design pressure

0.09 MPa

1.3

工作温度

Working temperature

-165℃

1.4

出口温度℃

Working temperature

出口温度比环境温度低10℃

The outlet temperature is 10℃ below the ambient temperature

1.5

设计温度

Design temperature

-196℃

1.6

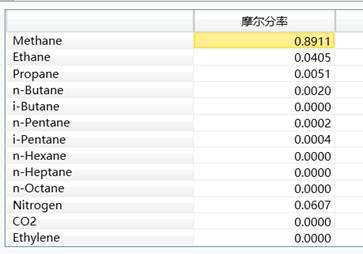

贮存介质

Storage medium

天然气

Natural gas

1.7

型式

Type

空温式

Air-heated vaporizer

1.8

汽化量

Vaporization quantity

500 Nm³/h

2.技术要求

Technical requirements

序号 SN	名称 Name	数量 Qty
2.1	设备数量 The number of equipment	1set
2.2	进出口管口尺寸 Size of the inlet and outlet ports	DN50/DN80
2.3	连续运行时间 Continuous operating time	不低于8h.(Not less than 8 hours.)
2.4	对外连接采用法兰连接，法兰标准 The external connection is flange connected. Flange Standard	HG/T20592-2009的A系列 Series A of HG / T20592-2009
2.5	所有受压部件的焊缝应为全焊透焊缝 The welds of all compressed parts shall be fully penetration.
2.6	装置设计寿命 Design life of the device	15年 15 years
2.7	脱油去脂，油脂残余率 Degrease and remove fat, oil residual rate	125 mg/m²
2.8	全部完工后，用干燥氮气吹除杂物并正压封存 After completion, blow out the debris with dry nitrogen and seal it under positive pressure.

For more information, please contact us by email sales@wintekgroup.com

Keywords: Ambient air vaporizer, Finned tube vaporizer, Natural heat absorption vaporizer, Cryogenic liquid vaporizer, LNG ambient air vaporizer, LPG ambient air vaporizer
