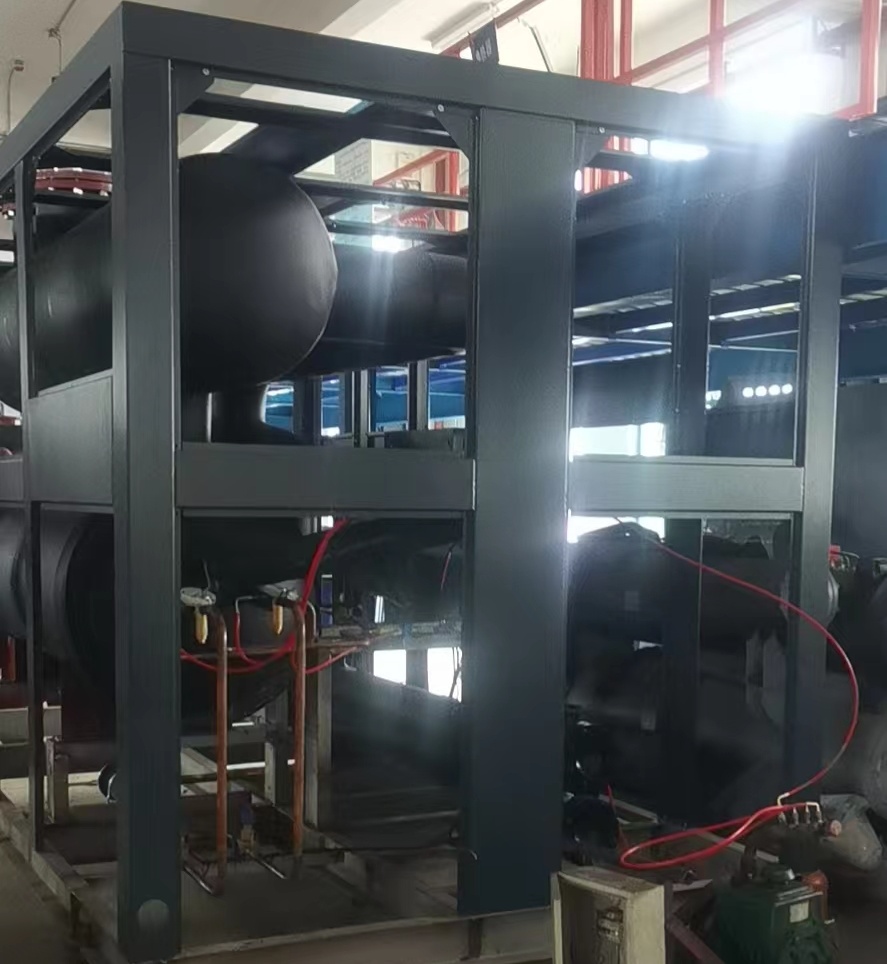

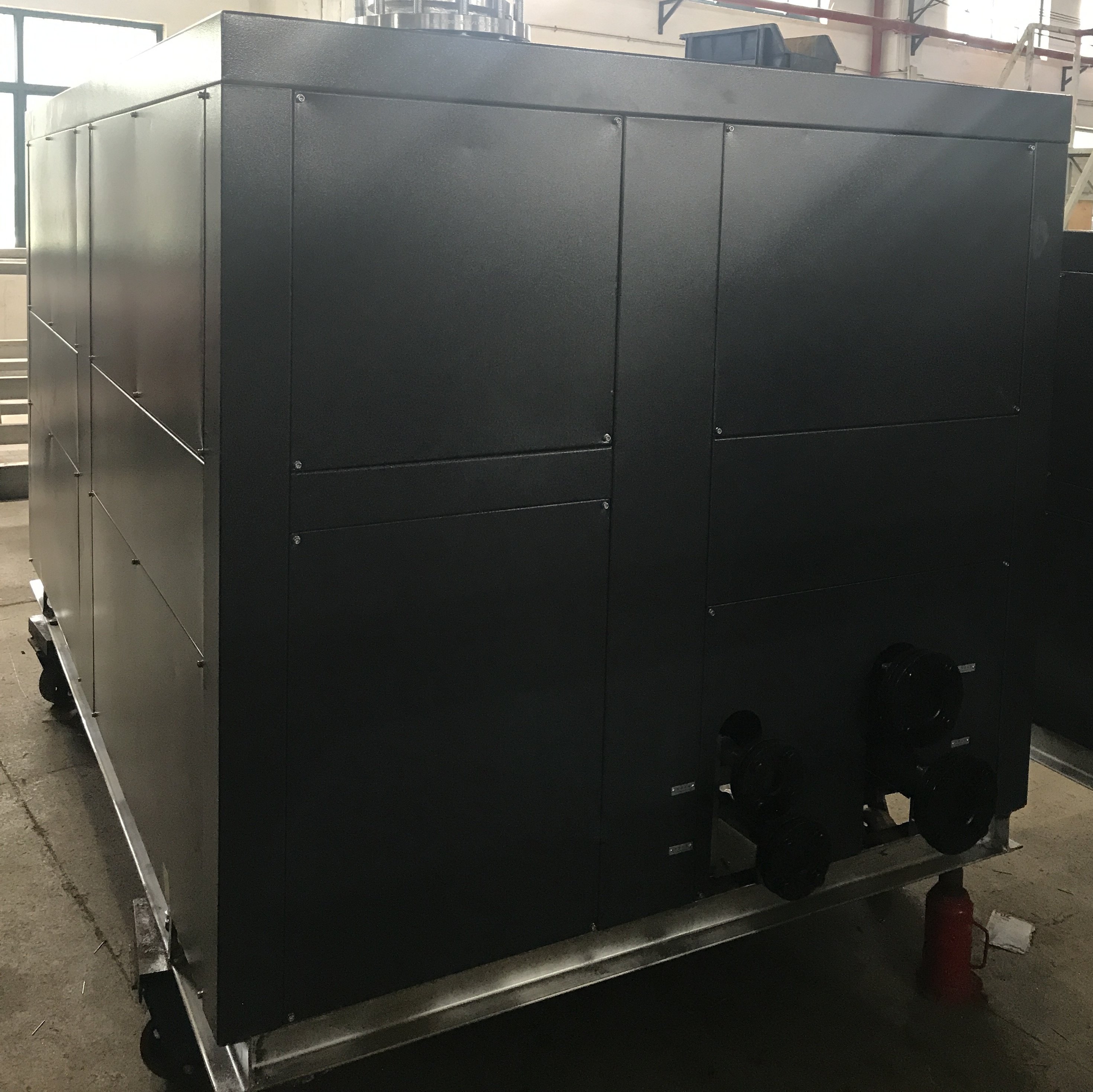

55007A BGYL-337F/42Y Natural Gas Pre-cooling Unit
Tag No: 55007A
Model: BGYL-337F/42Y
Name: Natural Gas Pre-cooling Unit
1.技术参数表
Technical parameters list
|
序号 SN |
名称 Name |
技术参数 Parameter |
|
1.1 |
型号 Model |
BGYL－337F/42Y |
|
1.2 |
天然气处理量 Natural gas processing capacity |
337 Nm³/h |
|
1.3 |
进气温度 Inlet temperature |
60℃ |
|
1.4 |
天然气进口压力 Natural gas inlet pressure |
4.19 MPa G |
|
1.5 |
冷却方式 Cooling method |
风冷 Air cooling |
|
1.6 |
电源 Power |
400 V//50 HZ |
|
1.7 |
适应工作制 Work mode |
连续工作 Continuous work |
|
1.8 |
天然气出气温度 Natural gas outlet temperature |
10℃ |
|
1.9 |
额定制冷量 Rated cooling capacity |
11 KW |
|
1.10 |
轴功率 Shaft power |
3.9 KW |
|
1.11 |
额定功率 Rated power |
5 KW |
|
1.11 |
运行电流 Operating current |
7 A |
|
1.13 |
最小配电功率 Minimum distribution power |
5 KW |
|
1.14 |
能量调节 Energy regulation |
100%不可调 100% non-adjustable |
|
1.15 |
天然气接管口径 Diameter of natural gas connection pipe |
（DN32） |
|
1.16 |
压力损耗 Pressure loss |
≤（10 KPa） |
|
1.17 |
制冷剂 Refrigerant |
R134A |
|
1.18 |
冷却形式 Cooling method |
风冷 Air cooling |
|
1.19 |
结构 Structure |
铜套铝翅片式 Copper sleeve aluminum fin |
|
1.10 |
环境温度 Ambient temperature |
≤42℃ |
|
1.11 |
风机数量 Number of blowers |
1台 1 set |
|
1.11 |
单台风机风量 Single blower air capacity |
7500 m3/h |
|
1.13 |
单台风机功率 Single blower power |
0.55 KW |
|
1.14 |
电机防护等级 Protection grade of motor |
ExhdⅡ BT4 |
|
1.15 |
设备安装位置 Equipment installation location |
室内 Indoor |
|
N1 |
备注 Remark |
|
|
N.1.1 |
制冷量指天然气进出口温度为标定状态，环境温度≤42℃工况下的制冷量。 The cooling capacity refers to the cooling capacity under the condition that the natural gas inlet and outlet temperatures are calibrated and the ambient temperature is ≤ 42℃. |
|
2.主要供货及配置清单
Main supply and configuration list
|
序号 SN |
名称 Name |
单位 Unit |
数量 Qty |
|
2.1 |
防爆压缩机 Explosion proof compressor |
台 Set |
1 |
|
2.2 |
风冷冷凝器 Air-cooled condenser |
片 Pc |
1 |
|
2.3 |
冷凝风机 Condenser blower |
台 Set |
1 |
|
2.4 |
油分离器 Oil separator |
台 Set |
1 |
|
2.5 |
排气截止阀 Outlet globe valve |
只 Pc |
1 |
|
2.6 |
储液桶 Liquid storage tank |
台 Set |
1 |
|
2.7 |
出液阀 Outlet valve |
只 Pc |
1 |
|
2.8 |
干燥过滤器 Dry filter |
只 Pc |
1 |
|
2.9 |
干燥滤芯 Dry filter element |
只 Pc |
1 |
|
2.10 |
蒸发器 Evaporator |
台 Set |
1 |
|
2.11 |
液路电磁阀 Hydraulic solenoid valve |
只 Pc |
1 |
|
2.12 |
膨胀阀 Expansion valve |
只 Pc |
1 |
|
2.12 |
冷媒压力表 Cooling medium pressure gauge |
只 Pc |
2 |
|
2.14 |
压力传感器 Pressure sensor |
只 Pc |
2 |
|
2.15 |
温度传感器 Temperature sensor |
只 Pc |
2 |
|
2.16 |
回油过滤器 Return oil filter |
只 Pc |
1 |
|
2.17 |
回油电磁阀 Return oil solenoid valve |
只 Pc |
1 |
|
2.18 |
视油镜 Oil sight glass |
只 Pc |
1 |
|
2.19 |
防爆电磁阀线圈 Explosion proof solenoid valve coil |
只 Pc |
2 |
|
2.20 |
带保护罩球阀 Ball valve with protective cover |
只 Pc |
2 |
|
2.21 |
安全阀 Safety valve |
只 Pc |
2 |
|
2.22 |
制冷剂 Refrigerant |
项 Pc |
1 |
|
2.22 |
PLC |
项 Pc |
1 |
|
2.24 |
防爆电箱 Explosion proof electrical box |
只 Pc |
1 |
|
2.25 |
接触器 Contactor |
项 Pc |
1 |
|
2.26 |
设备外壳 Equipment shell |
项 Pc |
1 |
|
2.27 |
机组底架 Compressor unit chassis |
项 Pc |
1 |
|
2.28 |
连接铜管 Connecting copper pipes |
项 Pc |
1 |
|
2.29 |
保温材料 Thermal insulation material |
项 Pc |
1 |
|
N2 |
备注 Remark |
||
|
N.2.1 |
预冷机进出口温度，带远传，压缩机可远程停止，带运行状态指示。 Pre-cooling equipment inlet and outlet temperature, with remote transmission, compressor can be remotely stopped, with operation status indication. |
||
