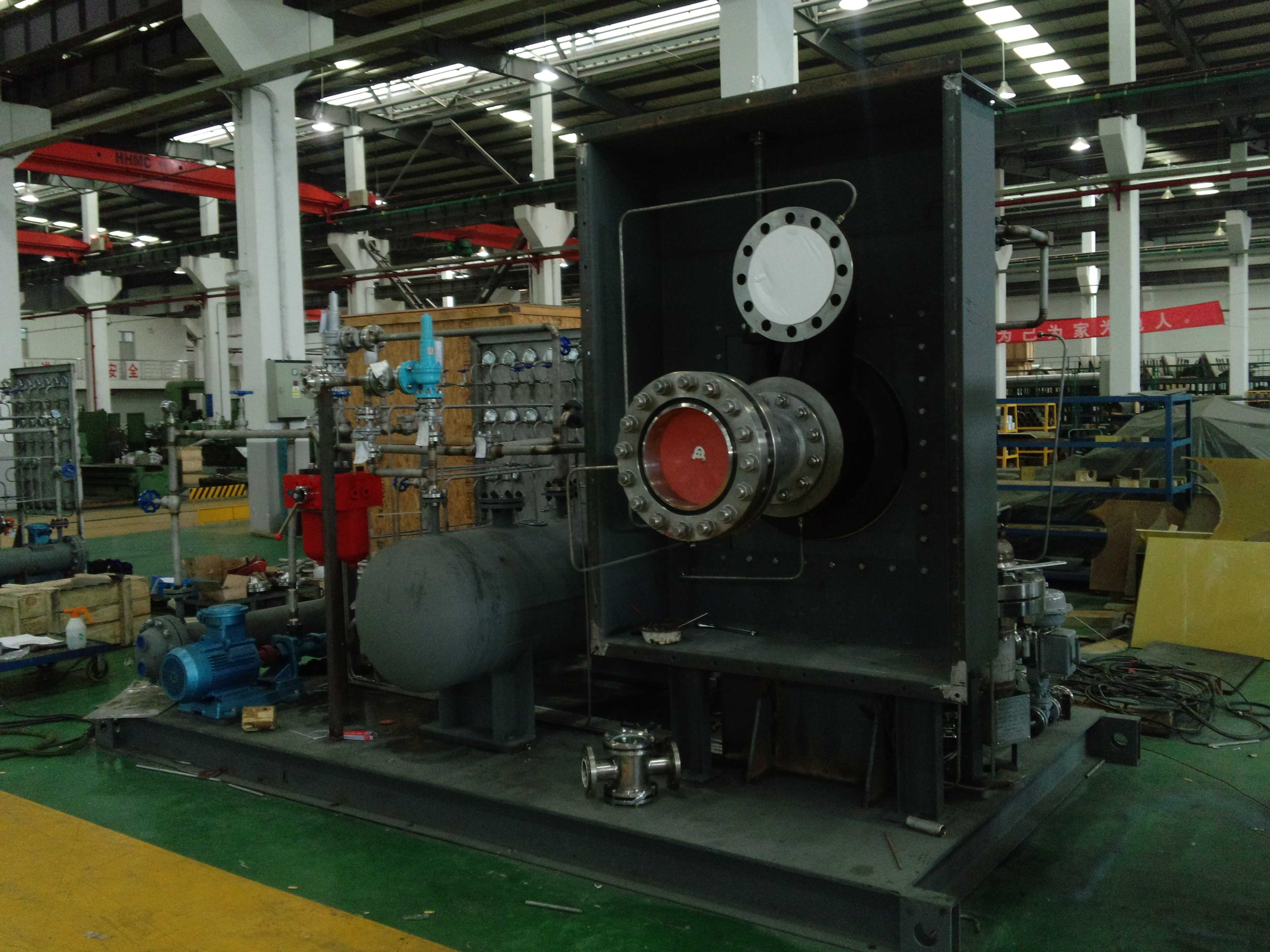

570105A 2.5 kg/s Turbine Expander

ꄴPrevious： 57106A Turbine Expander
ꄲNext： 57103A 2500/1.0-0.14 Oil Bearing Turbine Expander

Tag No.: 570105A

Model: 2.5 kg/s

Name: Turbine Expander



1.Technical parameters of the expander

SN

Name

Parameter

1.1

Medium

air

1.2

Flow rate

2.5 kg/s

1.3

Inlet pressure

0.8 MPa (A)

1.4

Inlet temperature

283 K

1.5

Outlet pressure

0.185 MPa (A)

1.6

Outlet temperature

212 K

1.7

Efficiency

84.5%

1.8

Flow regulation range

80～120%

1.9

Expansion work

203 KW

1.10

Bearing power consumption

25 KW

1.11

Boosting power

178 KW



2.Technical parameters of booster

SN

Name

Parameter

2.1

Medium

air

2.2

Flow rate

2.5 kg/s

2.3

Inlet pressure

0.465 MPa A

2.4

Inlet temperature

313 K

2.5

Outlet pressure

0.81 MPa A

2.6

Outlet temperature

383 K

2.7

Efficiency

76.5%



For more information, please contact us by email sales@wintekgroup.com

Keywords: 57105A, Turboexpander, Oil-Lubricated Turboexpander, Industrial Turboexpander, Energy Recovery Turbine, Turboexpander-Compressor
